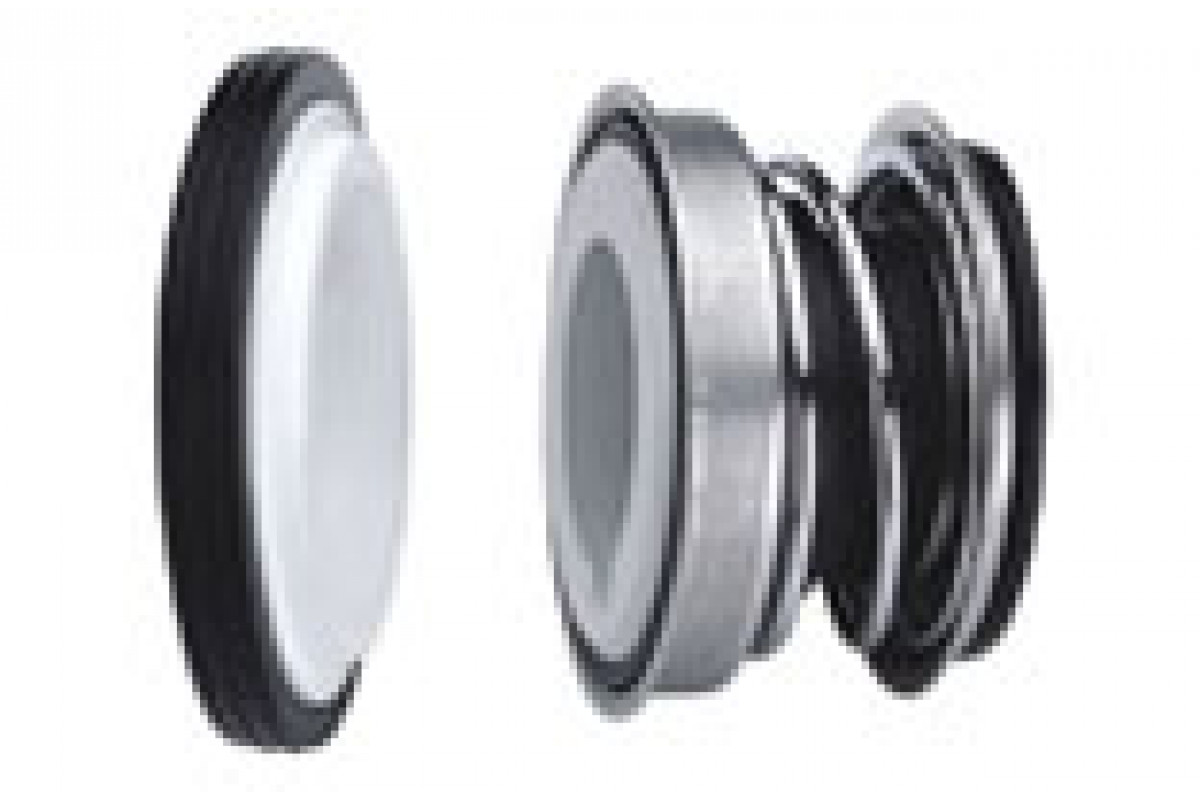

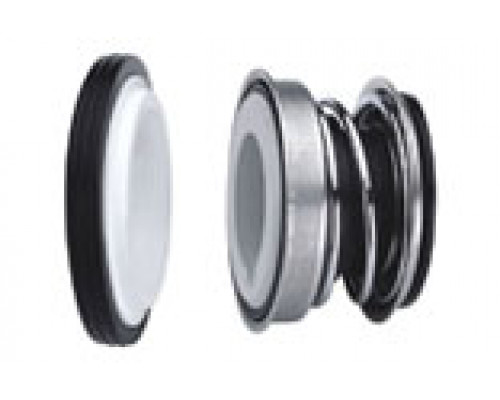

The mechanical seal IN0140.102.VVPGG is a bellows-type sealing solution engineered for reliable operation in rotary shaft applications. This model belongs to the IN102 series, a comprehensive line featured in our catalog of mechanical seals, designed to meet specific dimensional and material requirements for optimal performance. Its construction is defined by precise geometric parameters, including a shaft diameter (d1) of 14 mm, an outer diameter of the moving part (d3) of 33 mm, and an external diameter of the fixed part (d7) of 35 mm. The overall seal length (L3) is 17.5 mm. These critical dimensions of the mechanical seal ensure a correct fit and function within the designated housing.

Key to its durability and application range is the material composition. The primary sealing faces utilize ceramic for both the fixed and moving parts, providing excellent wear resistance, hardness, and compatibility with a wide array of fluids, including abrasive media. The metal structural components are manufactured from AISI304 stainless steel, offering good corrosion resistance. The elastomeric bellows element is made from NBR (Nitrile Butadiene Rubber), a material selected for its robust sealing properties and resistance to oils, fuels, and water across a broad temperature spectrum.

As a bellows seal, the IN0140.102.VVPGG eliminates the need for a dynamic O-ring, which reduces friction and hang-up tendencies, making it suitable for applications where shaft fretting or vibration may be a concern. The seal grade 102 designation indicates its standardized design within the series, facilitating easy selection and replacement from the catalog. This mechanical seal is typically applied in pumps, mixers, and other industrial equipment requiring a dependable seal on a 14 mm shaft. Its material combination makes it a versatile choice for general industrial service, chemical processing, and water handling systems where chemical resistance and mechanical longevity are paramount. Consulting the detailed specifications, including all provided dimensions of the mechanical seal, is essential for verifying compatibility with your specific equipment and operational conditions.
