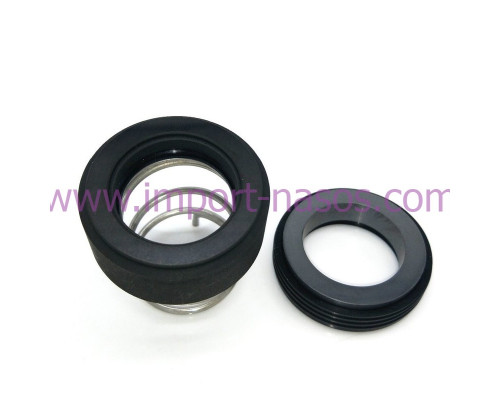

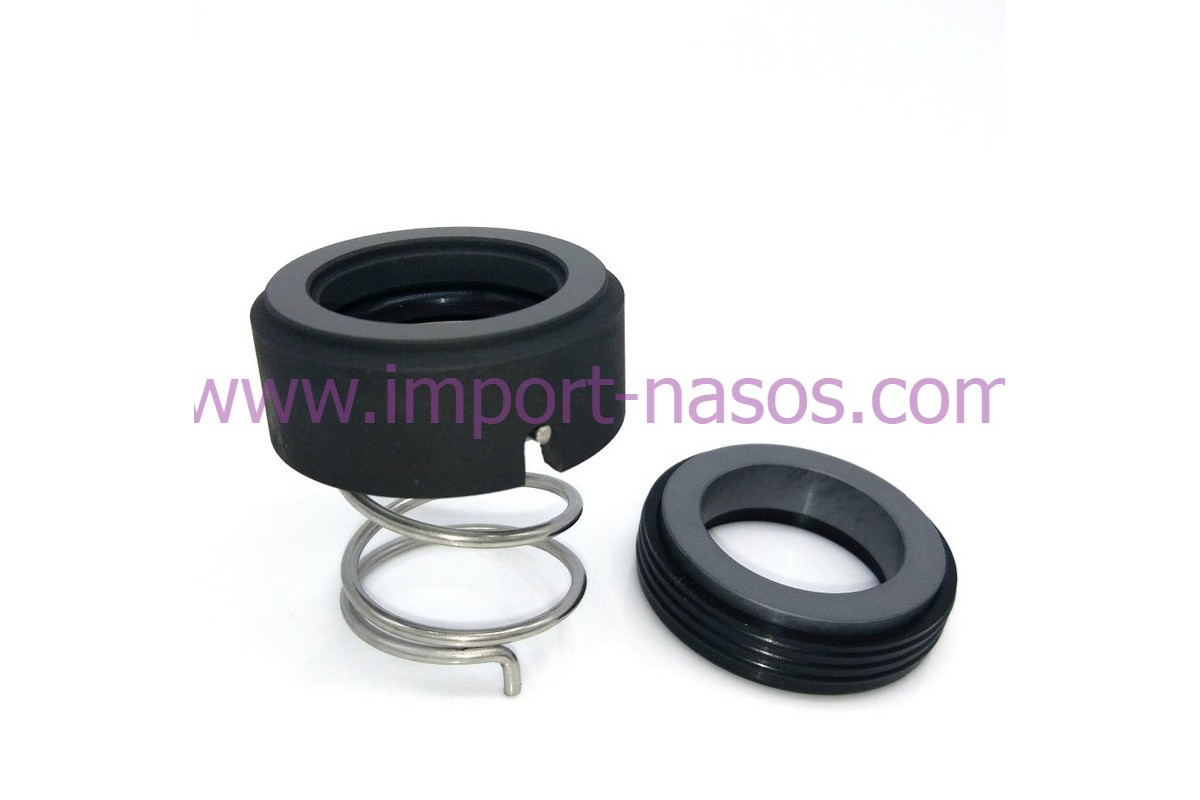

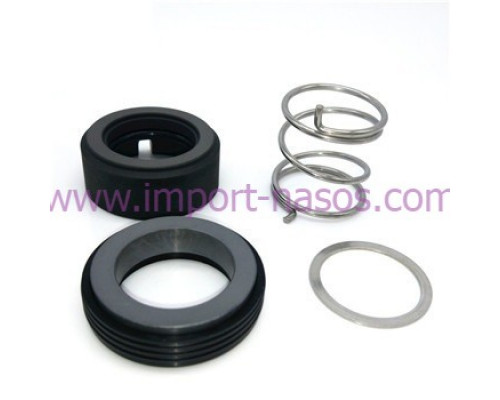

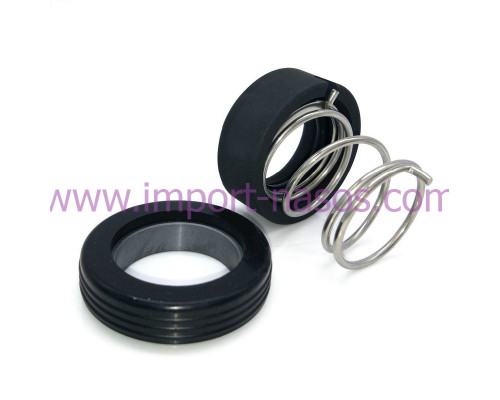

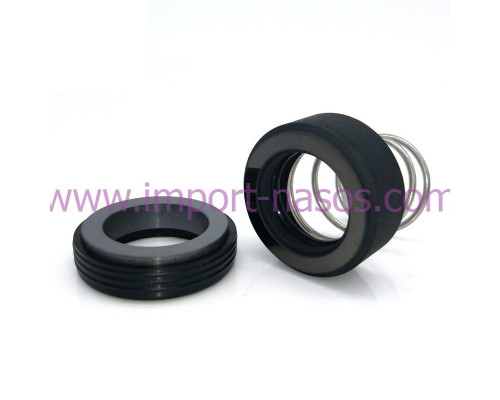

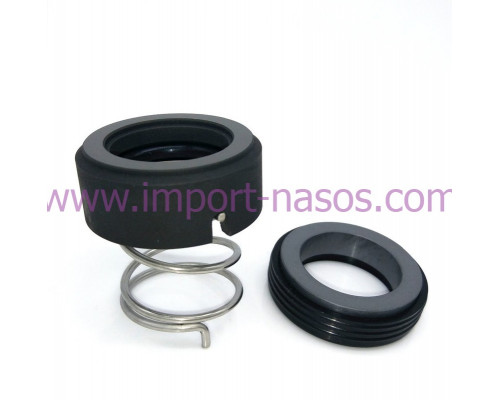

The IN0160.120MBPGG is a precision mechanical seal from the IN120M series, designed for reliable shaft sealing in a wide range of industrial rotary equipment. This model belongs to the comprehensive catalog of mechanical seals (каталог торцевих ущільнень) and is engineered to exacting dimensional standards, ensuring compatibility and ease of installation. Its primary application is in pumps, mixers, and compressors where effective fluid containment is critical.

Constructed for durability and consistent performance, the seal features a balanced material selection. The fixed and moving seal faces are manufactured from graphite, providing excellent self-lubricating properties and thermal conductivity. These faces are paired with metal components made from corrosion-resistant AISI304 stainless steel, offering structural integrity in various operational environments. The secondary sealing element utilizes NBR (Nitrile Butadiene Rubber), a material chosen for its good resistance to oils, fuels, and a range of fluids.

Key technical specifications define its application scope. The IN0160.120MBPGG is designed for a nominal shaft diameter (d1) of 16 mm. The external diameters of both the fixed (d7) and moving (d3) parts are 27 mm, contributing to a compact and stable assembly. The overall seal length (L3) is 19.5 mm, a critical dimension for axial space considerations. These precise розміри торцевого ущільнення are essential for correct selection from the catalog and proper gland or housing fit. The actuation mechanism employs a cylindrical spring design, ensuring uniform face loading and consistent sealing pressure during operation, even in the presence of minor shaft runout or vibration.

This mechanical seal is classified under the 120M seal grade, indicating a standardized configuration known for its versatility and robust performance in general industrial service. Its design prioritizes leak-free operation, reduced maintenance intervals, and extended service life for rotating equipment. When selecting a seal, referencing the detailed specifications of the IN0160.120MBPGG within the official catalog of mechanical seals is recommended to confirm suitability for specific pressure, temperature, and media conditions.

Mechanical Seal IN0160.120MBPGG: AISI304 & Graphite Spring Seal for 16mm Shafts

Mechanical Seal IN0160.120MBPGG: 16mm Shaft, 27mm OD, NBR Elastomer

Mechanical Seal IN0160.120MBPGG: Compact 120M Series Seal for 16mm Shafts with NBR Elastomer
